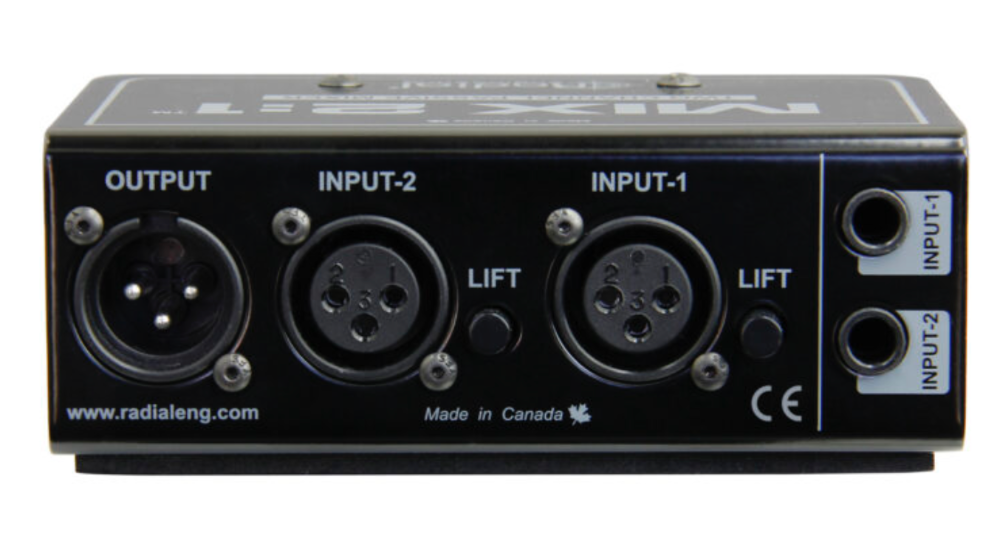

A black XLR audio mixer interface box with labeled ports OUTPUT, INPUT-2, INPUT-1, and LIFT, plus small input-output jacks on the right side.
Radial MG-31 audio mixer module shown from the front and rear, featuring two input channels with knobs on the top face and XLR output jacks on the rear.
A black XLR audio mixer interface box with labeled ports OUTPUT, INPUT-2, INPUT-1, and LIFT, plus small input-output jacks on the right side.
Radial MG-31 audio mixer module shown from the front and rear, featuring two input channels with knobs on the top face and XLR output jacks on the rear.

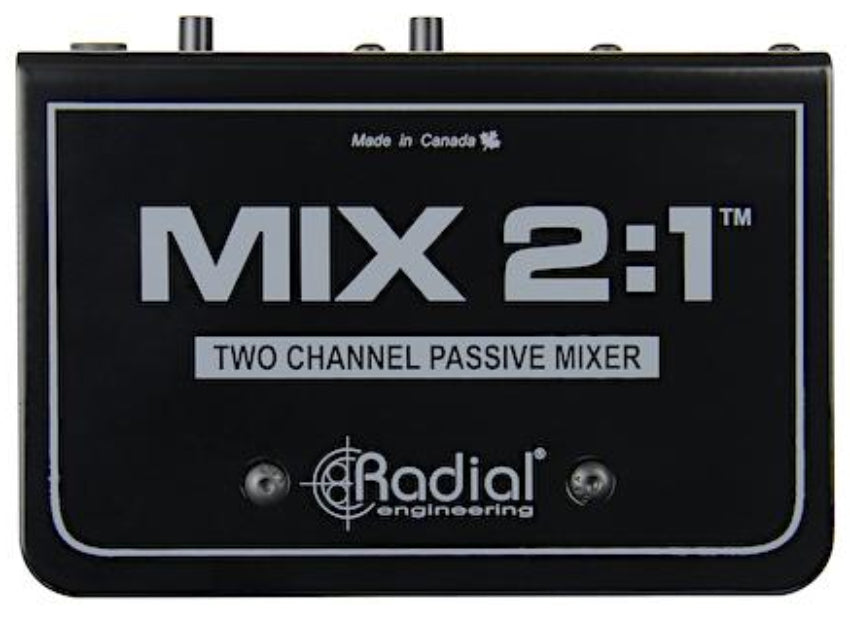

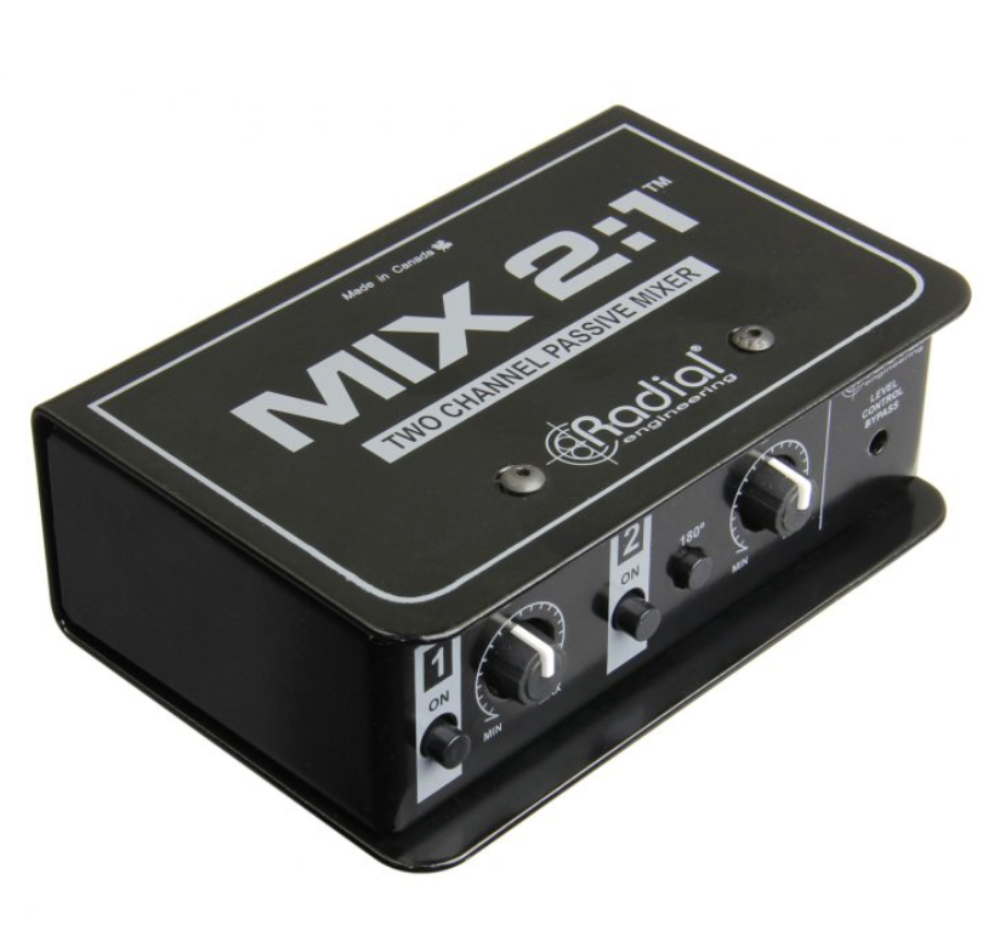

Radial Engineering Mix 2:1 Two-Channel Audio Combiner and Mixer

Sold Out
$189.99
By Radial Engineering
SKU: 149713
This product is unavailable
The MIX 2:1 is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two signals together and balance their relative input levels. At the inputs of the MIX 2:1, both ¼" TRS and XLR connectors are available, with ground lift switches to eliminate buzz and hum from ground loops and ensure noise-free operation. Each input can be individually engaged or disengaged, allowing you to audition either signal before summing both together. A trim control is also featured on each input, so if you are connecting two separate mono sources such as the outputs of two mic preamps, they can each be attenuated as needed to match their levels at the output. Both level controls can be completely bypassed, summing inputs 1 and 2 equally, and preventing accidental or unwanted level adjustments. The MIX 2:1 has a 180° flip on Input-2, to help solve issues with frequency cancellation due to the inputs being out of phase. After both signals are passively summed together, they feed a single XLR output that can be connected to a powered speaker, or the input of a console or recording interface. • MFSKU R800 1036 00 • UPC 676101044658
